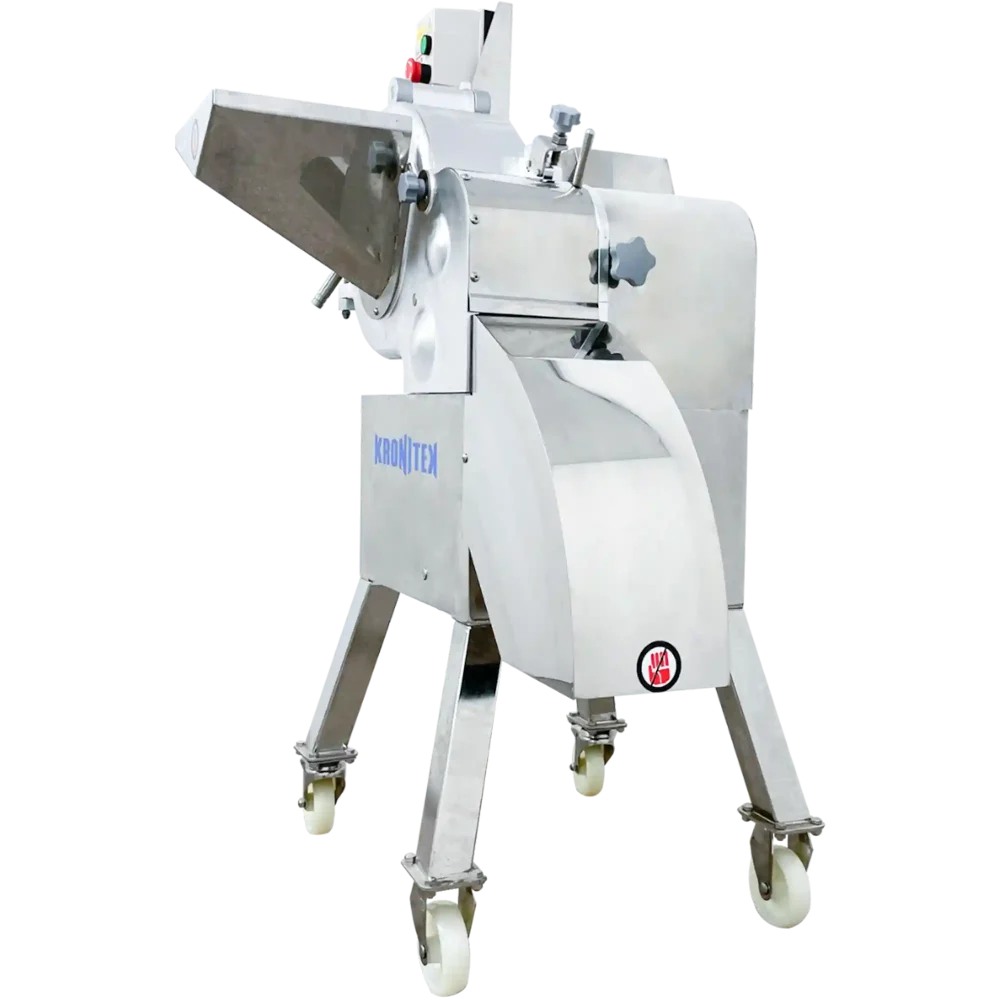

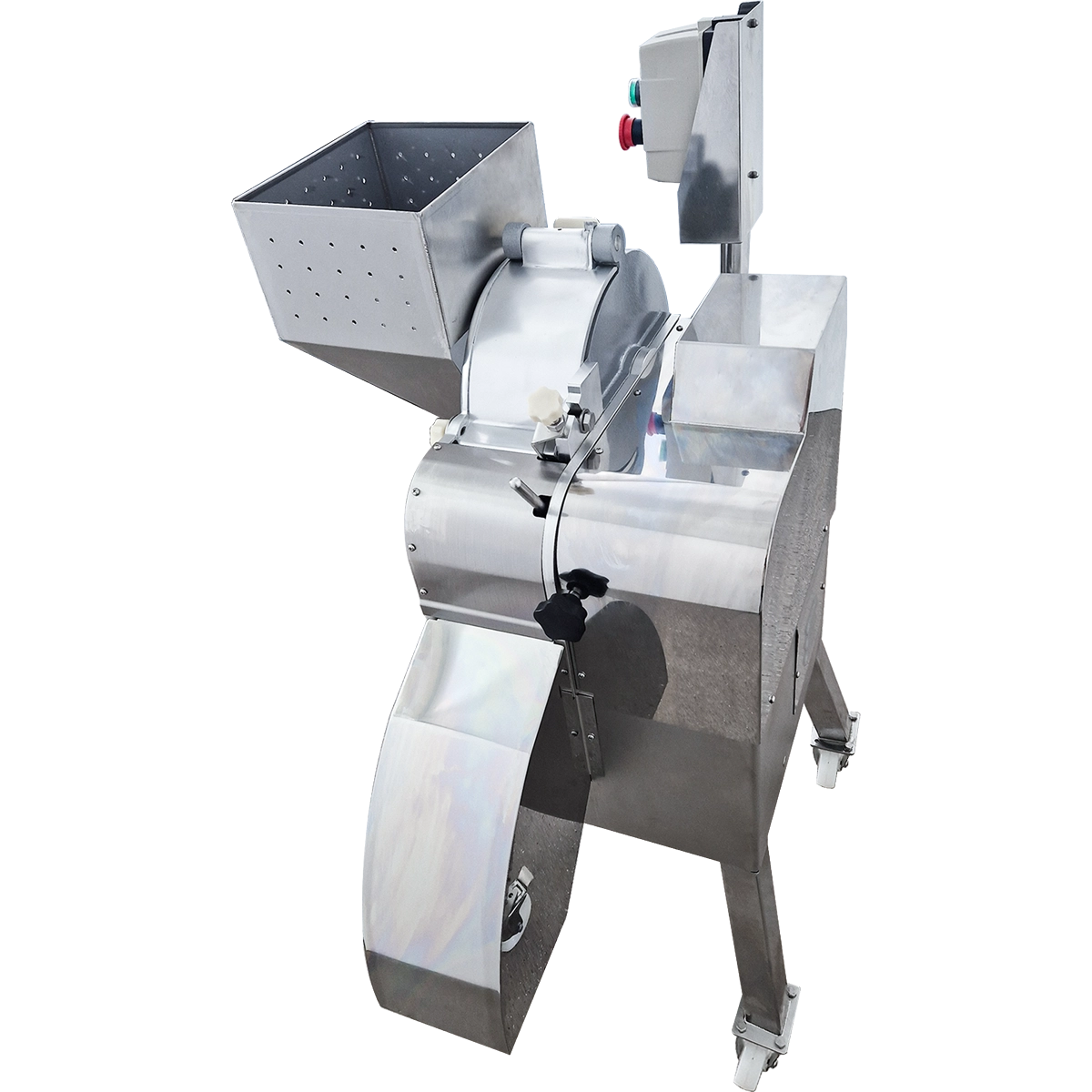

Industrial Food Dicing Machine

A high-performance cube cutting machine, can operate as a separate cutting machine or can be connected in a line. Thanks to the large rotating cylinder, it is possible to process large products such as sweet potatoes, iceberg lettuce, large potatoes, roots, carrots.

The machine is designed for cutting vegetables into cubes, straws, or slices. Cutting is done by rotating the product with the centrifugal force and fixed cutting knives. As a result – a smooth cut of the product is ensured. Due to the wide range of knives and their combination from 3 to 25 mm, it is possible to prepare different sizes of the final product – 3x3x3, 5x5x5, 25x25x25 as well as 5x10x15 mm, etc.

The machine is especially suitable for cutting large quantities of cubes of different sizes. By removing one knife, it is possible to cut in straws, and by leaving only one knife, it is possible to cut into slices.

Benefits and features

This machine can dice various root Vegetables and fruits into small cubes, such as carrot, potato, taro, onion, green pepper, sweet potato, bamboo shoot, mango, pineapple, apple, pawpaw, etc. The dicing size is customized.

Cutter is made from food-grade stainless steel, and it has an electric motor with a built-in frequency regulator.

Vegetables and fruits are manually delivered to the infeed hopper. Pieces are then discharged through the output funnel and into the receiving bin. Output funnel is placed 38 cm above floor level. This fruit and vegetable cutter is set on wheels and can be moved where you need it.

This cutter is for cutting different types of fruits and vegetables into strips, slices, or cubes. Mostly it is for potatoes, carrots, and beets, but it can also be used for other vegetables and fruits.
By using different cutting tools, you can choose the form of the cut pieces. When applying the required cutting tool, you can also choose the dimensions of the strips, slices, or cubes. With this cutter, you can cut vegetables and fruits into standard sizes because it comes with tools that ensure that. If necessary, we can add additional toolsets, which can be cut into smaller or more significant pieces.

We help food producers and processors modernize and improve their processes. Our best commercial electric machines at low prices, custom-built and tailored to your application, are great for dicing, vegetable, fruit and other products. We will find the best option for high performance equipment for industrial use. The machines we make can make a better business – less wasteful, more efficient and more profitable.

Comercial Vegetable and Fruit Cube Slicer

Depending on the thickness of the cut, the productivity of the machine is from 300-800 kg/h. Which is about five times better than a standard table top cutting machine.
The machine is made of stainless steel AISI 304, while the product rotation cylinder is made of aluminium.
The machine is mounted on two fixed wheels and two rotating wheels. This provides easy transportation and stability when locking the wheels.
The motor is located in a separate block, thus the machine can be washed with water, which speeds up the washing at the end of the production process.
With a special key, it is possible to remove disks in a few seconds. Thus, it is possible to quickly switch from one product size to another.

Technical information

Productivity	300-800 kg/h
Cutting thickness	3 to 25 mm
Available cutting sizes	You can combine slices, sticks, cubes of these dimensions 3, 5, 8, 10, 15, 20, 25 mm
Weight	100 kg
Dimensions	1260x700x800 mm
Electric connection	400 V / 220 V / 110 V, 50-60 Hz
Electric power	750 W (optional 1100 W / 1500 W or 2200 W)
Material	All parts that are in contact with food are made from stainless steel or aluminum

FAQ

What is transportation dimensions?

Transportation dimensions are 800x600x1500 mm.

What is available cube sizes?

Cutting sizes are from 3 till 25 mm, cutting are made via 3 knives, you can vary each blade cutting thickness and adjust your desired cutting size.

How fast can I change blades?

You can change blades, very fast usually it take 1-5 minutes to change blades.

What is available electricity connections?

We offer differrent electricity connections 400/230/110 Volts, 50-60 Hz. Before ordering, please, specify your required electricity connection.

Where can I buy spare parts?

Some parts are standard you can buy locally, ome parts should be ordered from us. We keep 90% of spare parts on stock and can ship via express delivery.
